Nikon Df Specifications

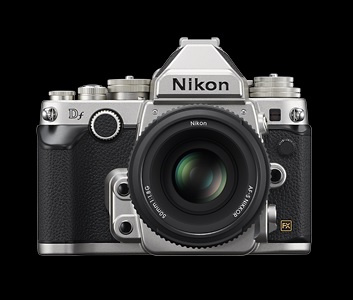

Nikon Df
Nikon Df

Buy Nikon Df 16.2 MP CMOS FX-Format Digital SLR Camera Body

Below are the full Nikon Df Specifications

Type

Single-lens reflex digital camera

Lens mount

Nikon F mount (with AF coupling and AF contacts)

Effective angle of view

Nikon FX format

Effective pixels

16.2 million

Image sensor

36.0 x 23.9 mm CMOS sensor

Total pixels

16.6 million

Dust-reduction System

Image sensor cleaning, Image Dust Off reference data (optional Capture NX 2 software required)

Image size (pixels)

FX (36 x 24) image area : 4928 x 3280 (L), 3696 x 2456 (M), 2464 x 1640 (S) DX (24 x 16) image area : 3200 x 2128 (L), 2400 x 1592 (M), 1600 x 1064 (S)

Nikon Df Specifications File format

NEF (RAW): 12 or 14 bit, lossless compressed, compressed, or uncompressed TIFF (RGB) JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression (Size priority); Optimal quality compression available NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats

Picture Control System

Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls

Media

SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards

File system

DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge

Viewfinder

Eye-level pentaprism single-lens reflex viewfinder

Frame coverage

FX (36 x 24): Approx. 100% horizontal and 100% vertical DX (24 x 16): Approx. 97% horizontal and 97% vertical

Nikon Df Specifications Magnification

Approx. 0.7 x (50 mm f/1.4 lens at infinity, -1.0 m-1)

Eyepoint

15 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)

Diopter adjustment

-3 - +1 m-1

Focusing screen

Type B BriteView Clear Matte Mark VIII screen with AF area brackets (framing grid can be displayed)

Reflex mirror

Quick return

Depth-of-field preview

Pressing Pv button stops lens aperture down to value selected by user (exposure modes A and M) or by camera (exposure modes P and S)

Lens aperture

Instant return, electronically controlled

Compatible lenses

Compatible with AF NIKKOR lenses, including type G, E, and D lenses (some restrictions apply to PC lenses) and DX lenses (using DX 24 x 16 1.5x image area), AI-P NIKKOR lenses, and non-CPU lenses. IX NIKKOR lenses and lenses for the F3AF can not be used. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the center 7 focus points with lenses that have a maximum aperture of f/8 or faster and the center 33 focus points with lenses that have a maximum aperture of f/7.1 or faster).

Shutter Type

Electronically-controlled vertical-travel focal-plane shutter

Nikon Df Specifications Shutter Speed

1/4000 - 4 s in steps of 1 EV (1/4000 - 30 s in steps of 1/3 EV with main command dial), X200 (with shutter-speed dial only), bulb, time

Flash sync speed

X=1/200 s; synchronizes with shutter at 1/250 s or slower

Release mode

Single frame, continuous low speed, continuous high speed, quiet shutter-release, self-timer, mirror up

Frame advance rate

1 - 5 fps (continuous low speed) or 5.5 fps (continuous high speed)

Self-timer

2 s, 5 s, 10 s, 20 s; 1 - 9 exposures at intervals of 0.5, 1, 2, or 3 s

Exposure Metering

TTL exposure metering using 2016-pixel RGB sensor

Metering method

Matrix: 3D color matrix metering II (type G, E, and D lenses); color matrix metering II (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data Center-weighted: Weight of 75% given to 12 mm circle in center of frame. Diameter of circle can be changed to 8, 15, or 20 mm, or weighting can be based on average of entire frame (non-CPU lenses use 12-mm circle) Spot: Meters 4 mm circle (about 1.5% of frame) centered on selected focus point (on center focus point when non-CPU lens is used)

Nikon Df Specifications Range (ISO 100, f/1.4 lens, 20 °C/68 °F)

Matrix or center-weighted metering: 0 - 20 EV Spot metering: 2 - 20 EV

Exposure meter coupling

Combined CPU and AI (collapsible metering coupling lever)

Exposure mode

Programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M)

Nikon Df Specifications Exposure compensation

-3 - +3EV in increments of 1/3 EV

Exposure bracketing

2 - 5 frames in steps of 1/3, 2/3, 1, 2, or 3 EV

Flash bracketing

2 - 5 frames in steps of 1/3, 2/3, 1, 2, or 3 EV

White balance bracketing

2 - 3 frames in steps of 1, 2, or 3

ADL bracketing

2 frames using selected value for one frame or 3 - 5 frames using preset values for all frames

Exposure lock

Luminosity locked at detected value with AE-L/AF-L button

ISO sensitivity (Recommended Exposure Index)

ISO 100 - 12800 in steps of 1/3 EV. Can also be set to approx. 0.3, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.7, 1, 2, 3, or 4 EV (ISO 204800 equivalent) above ISO 12800; auto ISO sensitivity control available

Active D-Lighting

Can be selected from Auto, Extra high +2/+1, High, Normal, Low, or Off

Autofocus

Nikon Multi-CAM 4800 autofocus sensor module with TTL phase detection, fine-tuning, and 39 focus points (including 9 cross-type sensors; the center 33 points are available at apertures slower than f/5.6 and faster than f/8, while the center 7 focus points are available at f/8)

Nikon Df Specifications Detection range

-1 - +19 EV (ISO 100, 20 °C/68 °F)

Lens servo

Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); predictive focus tracking activated automatically according to subject status Manual focus (M): Electronic rangefinder can be used

Focus point

Can be selected from 39 or 11 focus points

AF-area mode

Single-point AF; 9-, 21-, or 39-point dynamic-area AF, 3D-tracking, auto-area AF

Focus lock

Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button

Flash control

TTL: i-TTL flash control using 2016-pixel RGB sensor is available with SB-910, SB-900, SB-800, SB-700, SB-600, SB-400, or SB-300; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering

Flash mode

Front-curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, slow rear-curtain sync, Auto FP High-Speed Sync supported

Nikon Df Specifications Flash compensation

-3 - +1 EV in increments of 1/3 or 1/2 EV

Flash-ready indicator

Lights when optional flash unit is fully charged; flashes after flash is fired at full output

Accessory shoe

ISO 518 hot-shoe with sync and data contacts and safety lock

Nikon Creative Lighting System (CLS)

Advanced Wireless Lighting supported with SB-910, SB-900, SB-800, or SB-700 as a master flash and SB-600 or SB-R200 as remotes, or SU-800 as commander; Auto FP High-Speed Sync and modeling illumination supported with all CLS-compatible flash units except SB-400 and SB-300; Flash Color Information Communication and FV lock supported with all CLS-compatible flash units

Sync terminal

ISO 519 sync terminal with locking thread

Nikon Df Specifications White balance

Auto (2 types), incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual (up to 4 values can be stored, spot white balance measurement available during live view), choose color temperature (2500 K - 10000 K), all with fine-tuning

Lens servo

Autofocus (AF): Single-servo AF (AF-S); full-time servo AF (AF-F) Manual focus (M)

AF-area mode

Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF

Autofocus

Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)

Monitor

8-cm/3.2-in., approx. 921k-dot (VGA), low-temperature polysilicon TFT LCD with approx. 170 ° viewing angle, approx. 100% frame coverage, and brightness control

Playback

Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, photo slide shows, histogram display, highlights, photo information, location data display, and auto image rotation

USB

Hi-Speed USB

HDMI output

Type C mini-pin HDMI connector

Accessory terminal

Wireless remote controllers: WR-R10 and WR-1 (available separately) Remote cord: MC-DC2 (available separately) GPS unit: GP-1/GP-1A (available separately)

Supported languages

Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian

Battery

One rechargeable Li-ion EN-EL14a battery

AC adapter

EH-5b AC adapter; requires EP-5A power connector (available separately)

Tripod socket

1/4 in. (ISO 1222)

 Nikon Df SpecificationsDimensions (W x H x D)

Approx. 143.5 x 110 x 66.5 mm (5.6 x 4.3 x 2.6 in.)

Nikon Df Specifications Weight

Approx. 765 g (1 lb 11 oz) with battery and memory card but without body cap; approx. 710 g (1 lb 9 oz; camera body only)

Temperature

0 °C - 40 °C (+32 °F - 104 °F)

Humidity

85% or less (no condensation)

Nikon Df Specifications Supplied accessories

BS-1 accessory shoe cover, BF-1B body cap, EN-EL14a rechargeable Li-ion battery, MH-24 battery charger, DK-26 eyepiece cap, AN-DC9 strap, UC-E6 USB cable, String for eyepiece cap, ViewNX 2 CD

1. Unless otherwise stated, all figures are for a camera with a fully-charged battery operating at the temperature specified by the Camera and Imaging Products Association (CIPA): 23 ±3°C (73.4 ±5.4°F).
