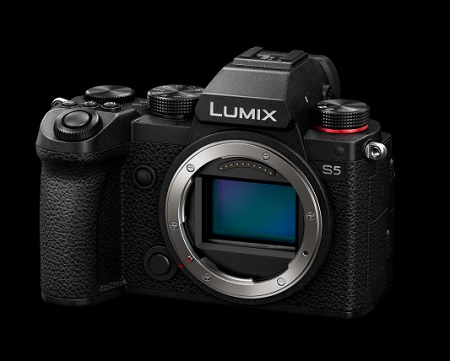

Panasonic Lumix S5 Review
Contents
hide
Compact Hybrid Body Design
All of these capabilities are housed in an amazingly tiny and lightweight housing, which also includes a full-frame image sensor and 10-bit 4K 60p/50p recording, as well as 14+ stops of V-Log.
CMOS sensor with 24.2MP resolution and Dual Native ISO technology
While taking both still shots and movies, the 24.2MP CMOS Sensor provides excellent sensitivity while also producing high-quality images. The use of Dual Native ISO technology* considerably improves the video quality.
Various Recording Modes are available.
Recording modes include 4K 60p/50p* 4:2:0 10-bit, C4K*/4K 30p/25p, and 4K 60p/50p 4:2:0 10-bit to meet a broad variety of requirements. 4:2:2 10-bit — plus 4K 8-bit — with no restriction on the amount of time that may be spent capturing video.
HDMI (High Definition Multimedia Interface) Output
When using the 10-bit option, 4:2:2 10-bit HDMI output is possible, as is simultaneous recording to an external disk or SD card using the 10-bit setting.
Video Data Output in RAW Format
With the firmware upgrade version 2.0, the Atomos Ninja V 4K HDR monitor-recorder can output up to 29.97p 5.9K (5888×3312, 16:9) / 59.94p 4K (4128×2176, 17:9) and Anamorphic 3.5K (3536×2656, 4:3) 12-bit RAW video data via HDMI, which may be saved as Apple ProRes RAW on the Ninja V.
Panasonic Lumix S5 Specifications
| Type |
| Digital Single Lens Mirrorless camera |
| Recording media |
| SD Memory Card / SDHC Memory Card / SDXC Memory Card |
| Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
| Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards. |
| Lens mount |
| L-Mount |
| IMAGE SENSOR |
| Type |
| 35mm full-frame (35.6mm x 23.8mm) CMOS sensor |
| Camera effective pixels / Total pixels |
| 24.20 megapixels / 25.28 megapixels |
| Aspect ratio / Color filter |
| 3:2 / Primary color filter |
| Dust reduction system |
| Image sensor shift type |
| LATITUDE |
| LATITUDE |
| 14+ stops (V-Log) |
| STILL IMAGE |
| Recording file format |
| Still image |
| JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072) |
| 6K PHOTO** / 4K PHOTO** |
| 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch)) |
| 4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch)) |
| Extracted still images: JPEG (DCF, Exif 2.31) |
| Aspect ratio |
| 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 |
| File size (Pixels) |
| When using full-frame lenses 3:2 |
| 6000×4000(L) / 4272×2848(M) / 3024×2016(S) / 12000×8000(XL)* / 8496×5664(LL)* *High Resolution Mode. |
| 5184×3456(6K PHOTO) / 3504×2336(4K PHOTO) / 5984×4000(HLG PHOTO, Full-Res.) / 3232×2160(HLG PHOTO, 4K-Res.) |
| When using full-frame lenses 4:3 |
| 5328×4000(L) / 3792×2848(M) / 2688×2016(S) / 10656×8000(XL)* / 7552×5664(LL)* *High Resolution Mode. |
| 4992×3744(6K PHOTO) / 3328×2496(4K PHOTO) / 5312×3984(HLG PHOTO, Full-Res.) / 2880×2160(HLG PHOTO, 4K-Res.) |
| When using full-frame lenses 16:9 |
| 6000×3368(L) / 4272×2400(M) / 3024×1704(S) / 12000×6736(XL)* / 8496×4784(LL)* *High Resolution Mode. |
| 3840×2160(4K PHOTO) / 5888×3312(HLG PHOTO, Full-Res.) / 3840×2160(HLG PHOTO, 4K-Res.) |
| When using full-frame lenses 1:1 |
| 4000×4000(L) / 2848×2848(M) / 2016×2016(S) / 8000×8000(XL)* / 5664×5664(LL)* *High Resolution Mode. |
| 2880×2880(4K PHOTO) / 4000×4000(HLG PHOTO, Full-Res.) / 2144×2144(HLG PHOTO, 4K-Res.)When using full-frame lenses 65:246000×2208(L)When using full-frame lenses 2:16000×3000(L)When using APS-C/Super 35mm lenses 3:23984×2656(L) / 2880×1920(M) / 2064×1376(S) / 3504×2336(4K PHOTO)When using APS-C/Super 35mm lenses 4:33536×2656(L) / 2560×1920(M) / 1840×1376(S) / 3328×2496(4K PHOTO)When using APS-C/Super 35mm lenses 16:93984×2240(L) / 2880×1624(M) / 1920×1080(S) / 3840×2160(4K PHOTO)When using APS-C/Super 35mm lenses 1:12656×2656(L) / 1920×1920(M) / 1376×1376(S) / 2880×2880(4K PHOTO)Image qualityRAW / RAW+Fine / RAW+Standard / Fine / StandardColor spacesRGB, AdobeRGBMOTION PICTURERecording file formatMOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit))MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))Switch NTSC / PALYes (NTSC (59.94Hz) / PAL(50.00Hz))MOV**NTSC (59.94Hz) Full-frame |
| [C4K] 4096×2160**** 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [C4K] 4096×2160**** 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| NTSC (59.94Hz) APS-C / Pixel by Pixel |
| [C4K] 4096×2160**** 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| [C4K] 4096×2160**** 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [C4K] 4096×2160**** 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| [4K] 3840×2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [Anamorphic 4K] 3328×2496 (4:3) 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [Anamorphic 4K] 3328×2496 (4:3) 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| PAL (50.00Hz) Full-frame |
| [C4K] 4096×2160**** 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| PAL (50.00Hz) APS-C / Pixel by Pixel |
| [C4K] 4096×2160**** 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| [C4K] 4096×2160**** 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable. |
| [4K] 3840×2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| [4K] 3840×2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [Anamorphic 4K] 3328×2496 (4:3) 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable. |
| [Anamorphic 4K] 3328×2496 (4:3) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) |
| [Anamorphic 4K] 3328×2496 (4:3) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| [FHD] 1920×1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable. |
| MP4** |
| NTSC (59.94Hz) Full-frame |
| [4K] 3840×2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [4K] 3840×2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| NTSC (59.94Hz) APS-C / Pixel by Pixel |
| [4K] 3840×2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [4K] 3840×2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| PAL(50.00Hz) Full-frame |
| [4K] 3840×2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| PAL(50.00Hz) APS-C / Pixel by Pixel |
| [4K] 3840×2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. |
| [4K] 3840×2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)HDMI RAW DATA OUTPUT****Compatible external devicesATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.55 or higher)* *Firmware must be updated to version 2.0 or later. |
| Blackmagic Video Assist 5″ 12G HDR, Blackmagic Video Assist 7″ 12G HDR (version 3.43 or higher)* *Firmware must be updated to version 2.3. |
| *This does not guarantee all of the capabilities that the compatible external recorder may have. |
| Rec quality |
| NTSC (59.94Hz) Full-frame |
| [5.9K] 5888×3312 29.97p, 12-bit (LPCM) |
| [5.9K] 5888×3312 23.98p, 12-bit (LPCM) |
| NTSC (59.94Hz) APS-C |
| [4K] 4128×2176 (17:9) 59.94p, 12-bit (LPCM) |
| [4K] 4128×2176 (17:9) 29.97p, 12-bit (LPCM) |
| [4K] 4128×2176 (17:9) 23.98p, 12-bit (LPCM) |
| [Anamorphic 3.5K] 3536×2656 (4:3) 29.97p, 12-bit (LPCM) |
| [Anamorphic 3.5K] 3536×2656 (4:3) 23.98p, 12-bit (LPCM) |
| PAL (50.00Hz) Full-frame |
| [5.9K] 5888×3312 25.00p, 12-bit (LPCM) |
| PAL (50.00Hz) APS-C |
| [4K] 4128×2176 (17:9) 50.00p, 12-bit (LPCM) |
| [4K] 4128×2176 (17:9) 25.00p, 12-bit (LPCM) |
| [Anamorphic 3.5K] 3536×2656 (4:3) 50.00p, 12-bit (LPCM) |
| [Anamorphic 3.5K] 3536×2656 (4:3) 25.00p, 12-bit (LPCM) |
| Audio format |
| LPCM (2ch 48kHz/16-bit) |
| SLOW & QUICK |
| MP4** |
| NTSC (59.94Hz) Full-frame |
| [FHD] 1920×1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| 1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps |
| *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more. |
| NTSC (59.94Hz) APS-C / Pixel by Pixel |
| [4K] 3840×2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [4K] 3840×2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| 1, 2, 5, 10, 15, 30, 60 fps |
| PAL (50.00Hz) Full-frame |
| [FHD] 1920×1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| [FHD] 1920×1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| 1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps |
| *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more. |
| PAL (50.00Hz) APS-C / Pixel by Pixel |
| [4K] 3840×2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
| 1, 2, 5, 10, 15, 30, 60 fps |
| VIEWFINDER |
| Type |
| OLED Live View Finder |
| Pixels |
| Approx. 2.36 million dots |
| Field of view / Magnification |
| Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 |
| Eye point / Diopter adjustment |
| Approx. 20 mm at infinity; -1.0 m-1 / -4.0 – +4.0 (dpt) |
| Eye sensor |
| Yes |
| Display speed |
| 120fps / 60fps |
| Display time lag |
| Approx. 0.005sec |
| REAR MONITOR |
| Type |
| TFT LCD monitor with static touch control |
| Monitor size |
| Free-angle, 3.0-inch (7.5cm), 3:2 aspect |
| Pixels |
| Approx. 1.84 million dots |
| Field of view |
| Approx. 100%FOCUSTypeContrast AF systemDFD technologyYesFocus modeAFS (Single) / AFC (Continuous) / MFAF modeAuto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3(Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.****AF detective rangeEV -6 – 20 (F1.4, ISO100 equivalent, AFS)AF custom settingAF Sensitivity, AF Area Switching Sensitivity, Moving Object PredictionAF assist lampYesAF lockSet the Fn button in custom menu to AF lockPost Focus / Focus StackingYes / YesOthersAF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring ControlEXPOSURE CONTROLLight metering system1,728-zone multi-pattern sensing systemLight metering modeMultiple / Center Weighted / Spot / Highlight WeightedMetering rangeEV0-18 (F2.0 lens, ISO100 equivalent)Exposure modeProgram AE / Aperture Priority AE / Shutter Priority AE / Manual ExposureISO sensitivity (Standard output sensitivity)Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISODual Native ISO |
| [Normal] |
| Native ISO: 100, 640 |
| Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO |
| [V-Log] |
| Native ISO: 640, 4000 |
| Auto: Auto / 320* / 640-51200 *Extended ISO |
| [HLG] |
| Native ISO: 400, 2500 |
| Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO |
| [Cinelike D2 / Cinelike V2] |
| Native ISO: 200, 1250 |
| Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO |
| Exposure compensation |
| 1/3 EV step ±5EV (±3EV for motion picture) |
| AE lock |
| Set the Fn button in custom menu to AE lock |
| IMAGE STABILIZATION SYSTEM |
| IMAGE STABILIZATION SYSTEM |
| Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] |
| Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.] |
| WHITE BALANCE |
| White balance |
| AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4 |
| White balance adjustment |
| Blue/Amber bias, Magenta/Green bias |
| Color temperature setting |
| 2500-10000K in 100K |
| SHUTTER |
| Type |
| Focal-plane shutter |
| Shutter speed |
| Still image: Bulb (Max. 30 minutes), 1/8,000 – 60Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60 |
| Electronic shutter: Bulb (Max. 60 sec), 1/8,000 – 60 |
| Motion picture: 1/16,000 – 1/25 |
| Creative Video M mode / MF mode: 1/16,000 – 1/2 |
| Self timer |
| 10sec, 3 images / 2sec / 10sec |
| Remote control |
| Remote control by DMW-RS2 (sold separately) |
| Silent mode / Shutter type |
| Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) |
| BRACKET |
| AE bracket |
| 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst |
| Aperture bracket |
| 3, 5 or all positions in 1 EV step |
| Focus bracket |
| 1 to 999 images, focus steps can be set in 10 levels |
| White balance bracket |
| 3 images in blue/amber axis or in magenta/green axis, color temperature setting |
| BURST SHOOTING |
| Burst speed |
| Mechanical shutter / Electronic front curtain shutter |
| AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| Electronic shutter |
| AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View) |
| Number of recordable images |
| RAW / RAW+JPEG: More than 24 images |
| JPEG: More than 999 images (When using a card with SD Speed Class with “UHS-II UHS Speed Class 3 (U3)” inserted into card slot 1.) |
| * When recording is performed under the test conditions specified by Panasonic. |
| 6K PHOTO** / 4K PHOTO** |
| Burst speed |
| 6K PHOTO: 30 frames/sec |
| 4K PHOTO: 60 frames/sec, 30 frames/sec |
| Exif information |
| Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.) |
| FLASH |
| Flash type |
| TTL External Flash (sold separately) |
| Flash mode |
| Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. |
| Flash synchronization |
| 1st Curtain Sync, 2nd Curtain Sync. |
| Flash output adjustment |
| 1/3EV step ±3EV |
| Synchronization speed |
| Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. |
| Wireless control |
| Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch |
| EXTRA TELE CONVERSION |
| EXTRA TELE CONVERSION |
| 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording. |
| PHOTO STYLE |
| Photo Style |
| Standard / Vivid / Natural / L. Classic Neo**** / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S**** / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10 |
| Picture adjustment |
| Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise**** / Sharpness / Noise Reduction / ISO / WB |
| *Adjustable settings vary depending on the Photo Style mode. |
| FILTERFILTERExpressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine**For photos only. |
| MOTION PICTURE FUNCTION |
| Vertical Position Information* |
| ON / Off *Firmware must be updated to version 2.2 or later. |
| Master pedestal level**** |
| 31 steps |
| Luminance level |
| 8-bit: 0-255 / 16-235 / 16-255 |
| 10-bit: 0‒1023 / 64‒940 / 64‒1023 |
| Wave form monitor / Vectorscope**** |
| Selectable |
| LUT display |
| LUT View Assist (Monitor) / LUT View Assist (HDMI) |
| Time code |
| Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.) |
| SS/Gain operation**** |
| Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB |
| Knee control |
| Yes (in Like709 mode) |
| FUNCTION BUTTON |
| REC |
| Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot “6K/4K PHOTO” / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope**** / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default |
| PLAY |
| Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default |
| LEVEL GAUGE |
| LEVEL GAUGE |
| Yes |
| OSD LANGUAGE |
| OSD LANGUAGE |
| English, Chinese (Traditional), Chinese (Simplified), Thai, Arabic, Persian, Vietnamese, Hindi |
| PictBridge compatible |
| INTERFACE |
| USB |
| SuperSpeed USB 3.1 Gen1 Type-C |
| HDMI*** |
| Monitor-through |
| When a mode other than [C4K/60p]****/[C4K/50p]****/[4K/60p]/[4K/50p] is selected for [Picture Quality]: |
| 4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit |
| When [C4K/60p]****/[C4K/50p]****/[4K/60p]/[4K/50p] mode is selected in [Rec Quality]:4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit. |
| Info Display: ON / OFF (selectable) |
| HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable) |
| Playback |
| microHDMI TypeD / VIERA Link, Audio: Stereo |
| NTSC (59.94Hz): Auto / C4K/60p**** / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p |
| PAL (50.00Hz): Auto / C4K/50p**** / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p |
| Remote input |
| φ2.5mm |
| External microphone / external audio device input |
| φ3.5mm for external microphone / external audio device |
| MIC (Plug-in Power) / MIC / LINE is selectable. |
| Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately). |
| Headphone output |
| φ3.5mm |
| Microphone |
| Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately). |
| XLR microphone |
| Yes with DMW-XLR1 (sold separately) |
| Speaker |
| Monaural |
| SD card slot |
| SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. |
| Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards. |
| WIRELESS |
| Wi-Fi |
| 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) |
| 5GHz bands (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries. |
| 1-13, 36, 40, 44, 48, 52, 56, 60, 64 ch |
| Bluetooth |
| Bluetooth® v4.2 (Bluetooth Low Energy (BLE)) |
| DUST AND SPLASH RESISTANT |
| DUST AND SPLASH RESISTANT* |
| Yes. |
| *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
| POWER |
| Battery |
| Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) |
| USB power supply, USB power charging |
| Battery life (CIPA standard) |
| Approx. 440 images (rear monitor), 470 images (LVF), 1,500 images (Power Save LVF mode*) with S-R2060 |
| *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
| Continuous recordable time (Motion picture)** |
| MP4 [4K/60p]: Approx. 110 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. |
| MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 100 min (APS-C, Pixel by Pixel) (LVF), 110 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. |
| Actual recordable time (Motion picture)** |
| MP4 [4K/60p]: Approx. 55 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. |
| MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 50 min (APS-C, Pixel by Pixel) (LVF), 55 min (APS-C, Pixel by Pixel) (rear monitor) *When using S-R2060. When the battery is fully charged. |
| Battery grip |
| DMW-BGS5 (sold separately) |
| DIMENSIONS / WEIGHT |
| Dimensions (W x H x D) |
| Approx. 132.6 x 97.1 x 81.9 mm / 5.22 x 3.82 x 3.22 inch (excluding protrusions) |
| Weight |
| Approx. 714g / 1.58 lb (SD Memory Card x 1, Battery, Body) |
| Approx. 630g / 1.39 lb (Body only) |
| OPERATING ENVIRONMENT |
| Operating temperature |
| 0oC to 40oC (32oF to 104oF) |
| Operating humidity |
| 10%RH to 80％RH |
| STANDARD ACCESSORIES |
| Software |
| Recording |
| LUMIX Tether |
| ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. |
| http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac) |
| Playback / Editing |
| ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet. |
| https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows) |
| ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory’s website using computer connected to the Internet. |
| http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac) |
| Standard accessories |
| DC-S5 Kit |
| Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C) |
| ・ The DC-S5 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
| NOTE |
| NOTE |
| ** About motion picture recording / 6K PHOTO/4K PHOTO recording |
| – 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages. |
| – Use a card with SD Speed Class with “”Class 4″” or higher when recording motion pictures in [MP4 (under 28Mbps)]. |
| – Use a card with SD Speed Class with “”UHS-I / UHS-II UHS Speed Class 3 (U3)”” when recording motion pictures with [MP4] in [4K], [MOV], [S&Q], [6K PHOTO] or [4K PHOTO]. |
| (SD speed class is the speed standard regarding continuous writing.) |
| – Recording stops when the continuous recording time exceeds 30 minutes in [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] [4K-A/50p] [C4K/4:2:2 10-bit] [4K/4:2:2 10-bit] [4K-A/4:2:2 10-bit] [4K/4:2:0 10-bit] [4K-A/4:2:0 10-bit] [S&Q]. |
| – Recording stops when the continuous recording time exceeds 15 minutes in [6K PHOTO] [4K PHOTO]. |
| – Motion pictures with [MP4] in [4K] or [MOV]: |
| – When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes, but the motion picture file will be divided and recorded/played back separately. |
| – When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately. |
| – Motion pictures with [MP4] in [FHD]: |
| – You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately. |
| – MOV motion picture with [MOV] |
| – When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes, but the motion picture file will be divided and recorded/played back separately. |
| – When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately. |
| – 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. |
| The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. |
| It may cause problems such as freezing when played on these devices. |
| – When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down. |
| *** For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as””4K compatible””. |
| **** Firmware must be updated to version 2.0 or later. |
